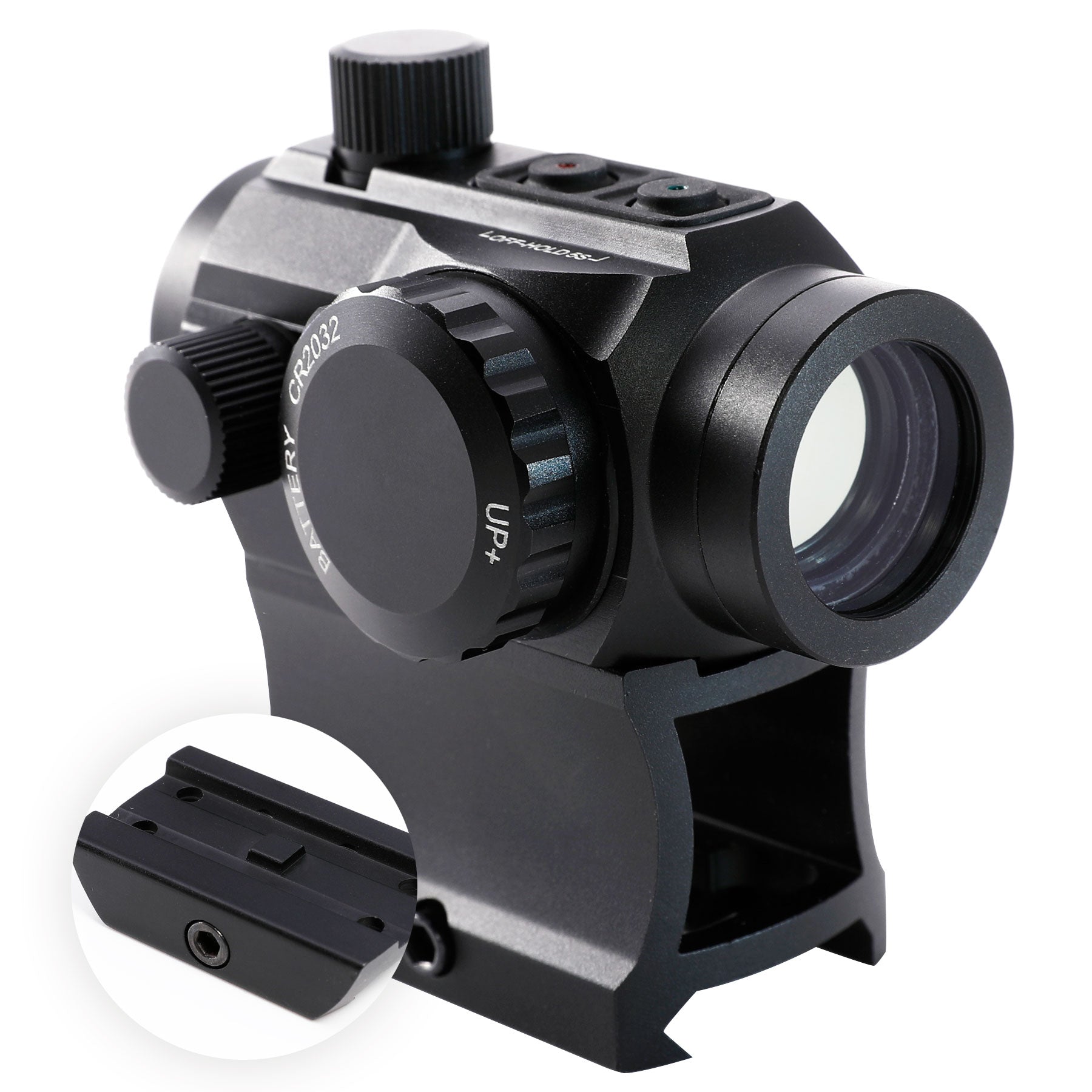

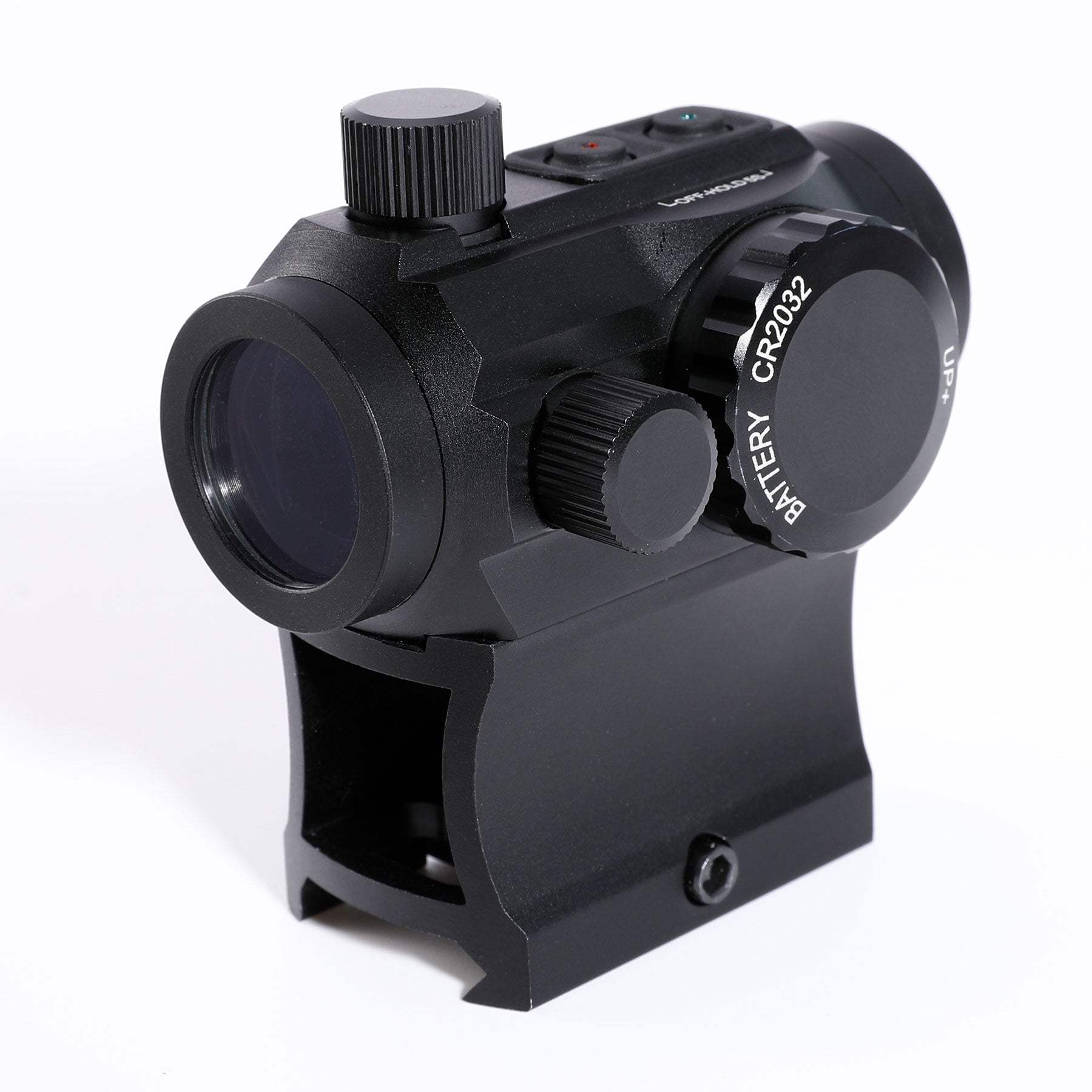

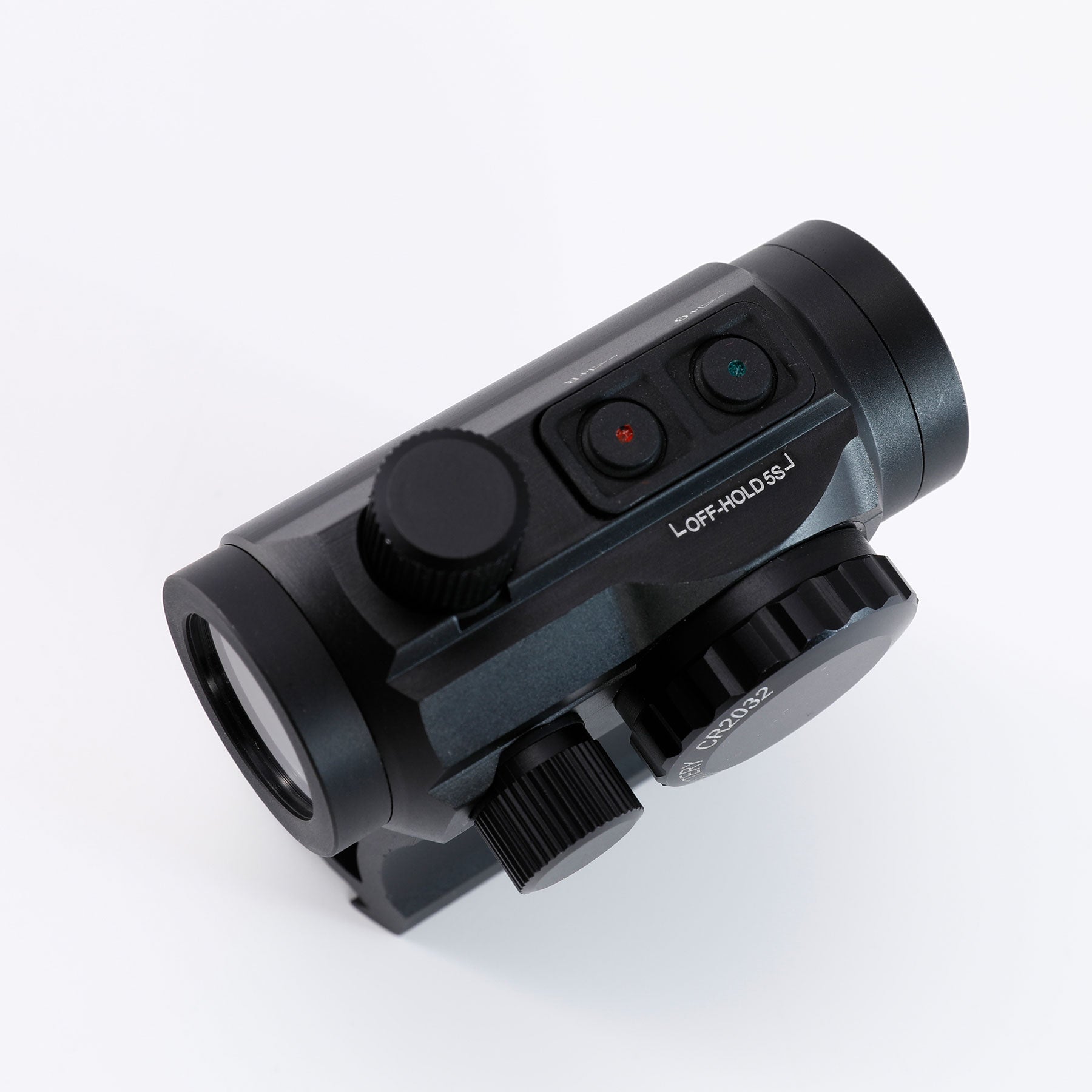

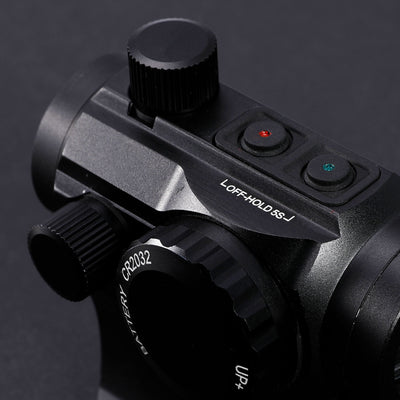

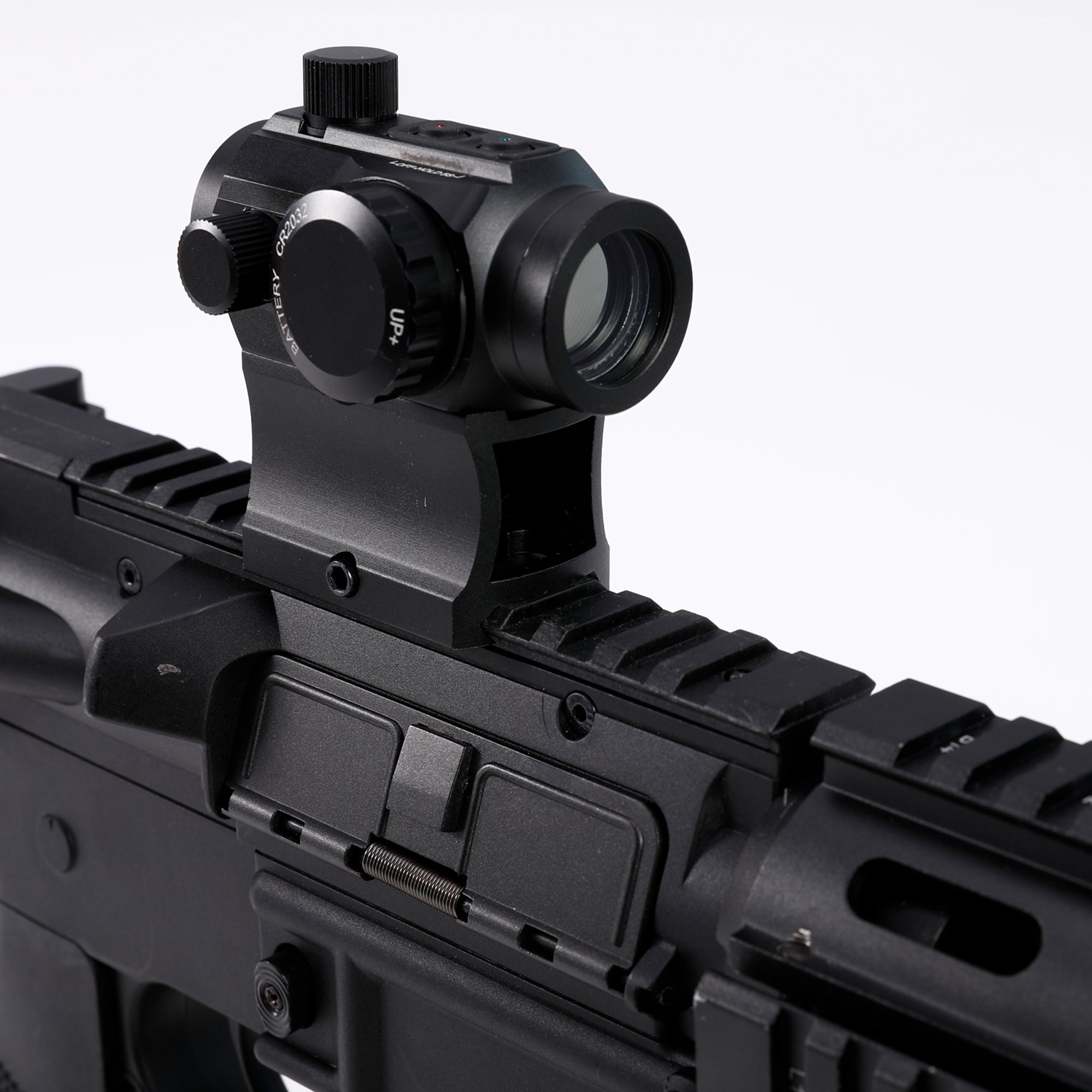

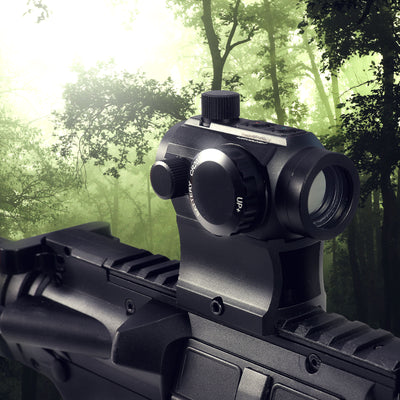

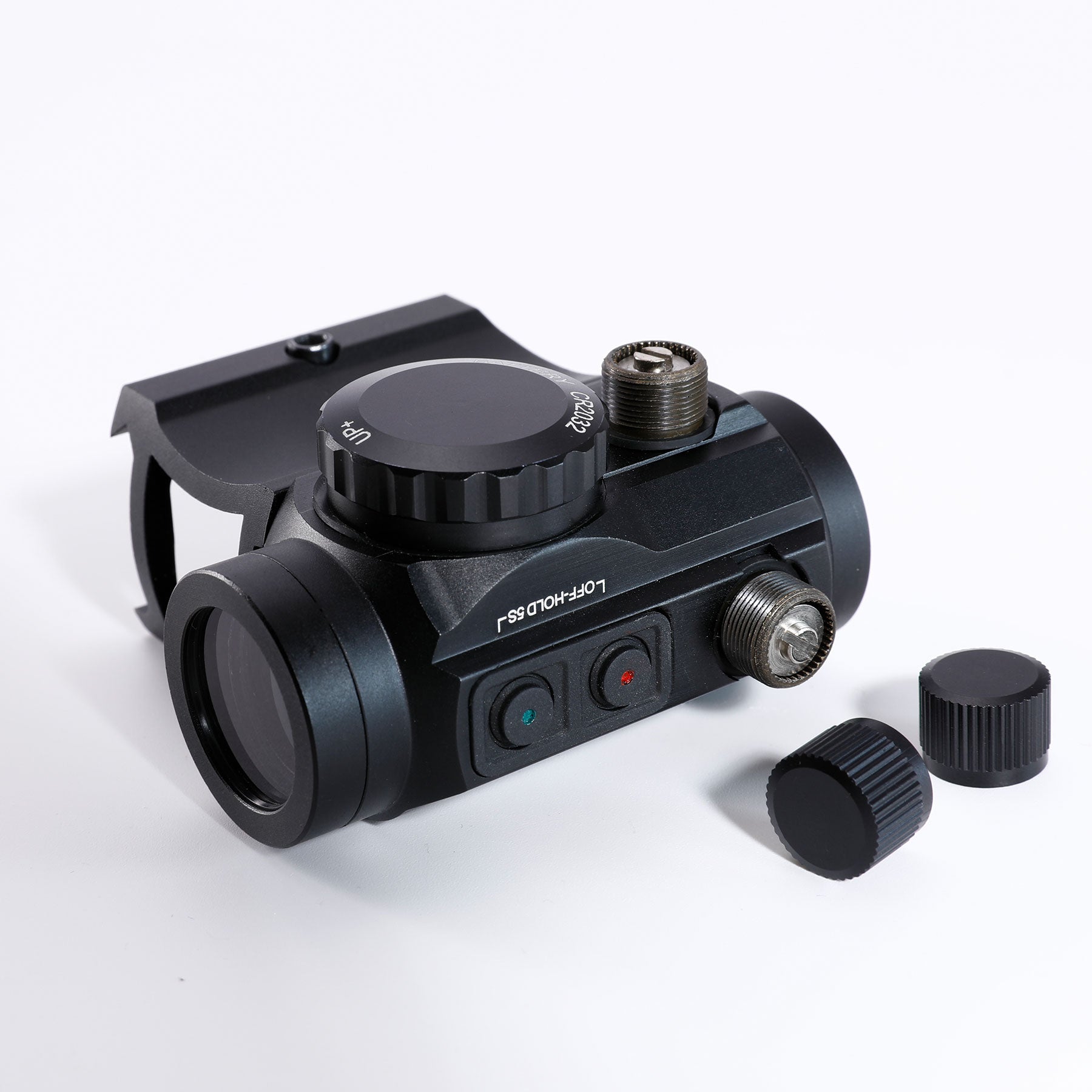

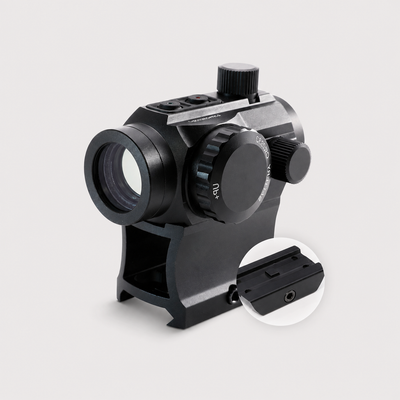

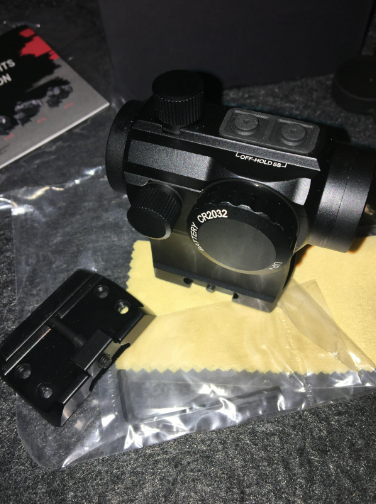

Pinty Nova 1x20mm 4 MOA Red Dot Sight

The key difference lies in how the reticle behaves when you change magnification:

• First Focal Plane (FFP): The reticle grows or shrinks in size as you zoom in or out. This means the subtensions (mil-dot or MOA markings) remain accurate at every magnification level, making FFP scopes ideal for long-range shooting and rapid holdovers.
• Second Focal Plane (SFP): The reticle stays the same size regardless of the magnification level. The reticle markings are only accurate at one specific magnification (usually the highest setting). SFP scopes are generally preferred for hunting or close-to-medium range target shooting due to their clean, consistently visible reticle.

The choice between a rifle scope and a red dot sight depends entirely on your target distance, shooting environment, and personal shooting style:

• Choose a Rifle Scope if:

1. Long-Range & Precision: You are shooting at medium-to-long distances (typically past 50–100 yards) where magnifying your target is essential.
2. Hunting & Target Competition: You need to pinpoint small target areas (like varmints or bullseyes) and require a reticle with MOA/MRAD markings to hold over for bullet drop and windage.
3. Low-Light Conditions: You often shoot at dawn or dusk, where a larger objective lens is needed to gather maximum ambient light.

• Choose a Red Dot Sight if:

1. Close Range & Speed: You primarily shoot at short-to-medium distances (under 50–100 yards) and prioritize ultra-fast target acquisition over magnification.
2. Tactical & Home Defense: You want an unlimited field of view and prefer shooting with both eyes open to maintain maximum situational awareness.
3. Lightweight Profile: You want to keep your setup as light, compact, and nimble as possible.

Still can't decide? An LPVO (Low Power Variable Optic) rifle scope gives you the best of both worlds, offering true 1x red-dot-like speed with the ability to crank up to 6x or more for longer shots.

MOA (Minute of Angle) and MRAD (Milliradian, or Mil) are two different angular units used to measure bullet drop and windage adjustments:

• MOA: Most popular among North American shooters. 1 MOA equals roughly 1 inch at 100 yards (or 1/4 inch at 25 yards for a standard 1/4 MOA click-adjustment scope).
• MRAD / Mil: The global tactical standard. 1 MRAD equals exactly 10 cm at 100 meters (or roughly 3.6 inches at 100 yards). A standard 0.1 MRAD click moves your impact 1 cm at 100 meters.

Rule of thumb: Choose MOA if you prefer thinking in inches and yards; choose MRAD if you prefer metric calculations or cross-platform tactical coordination.

How to Zero Your Optic:

1. Securely mount your rifle scope or red dot and set up a target at your target zero distance (e.g., 25 yards for red dots, 100 yards for scopes).
2. Fire a steady 3-shot group while aiming exactly at the bullseye.
3. Observe where the group hits relative to your crosshairs. Adjust the Elevation turret (Top) to shift the impact Up/Down, and the Windage turret (Right) to shift it Left/Right. Follow the directional arrows (e.g., "UP" or "R") marked on your turrets.
4. Fire another group to confirm, and fine-tune until your point of aim perfectly matches the point of impact.

Yes, our optics are engineered to withstand heavy bi-directional and linear recoil.

Shockproof & Rugged Build: Built from aircraft-grade aluminum cylinders and nitrogen-purged, our Vexa and Nova series rifle scopes, as well as our tactical red dots, are shockproof-tested to handle standard centerfire rifle calibers (such as .223/5.56, .308, etc.) as well as the unique, harsh forward-and-back recoil generated by heavy spring-piston airguns.

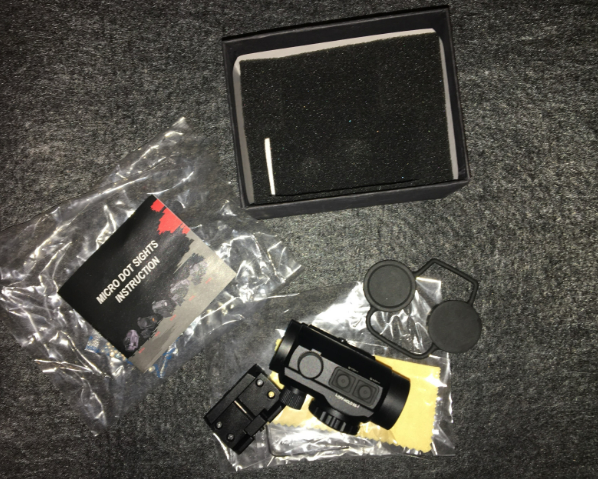

Most Pinty optics come ready to mount out of the box, but you just need to confirm which rail system your rifle features:

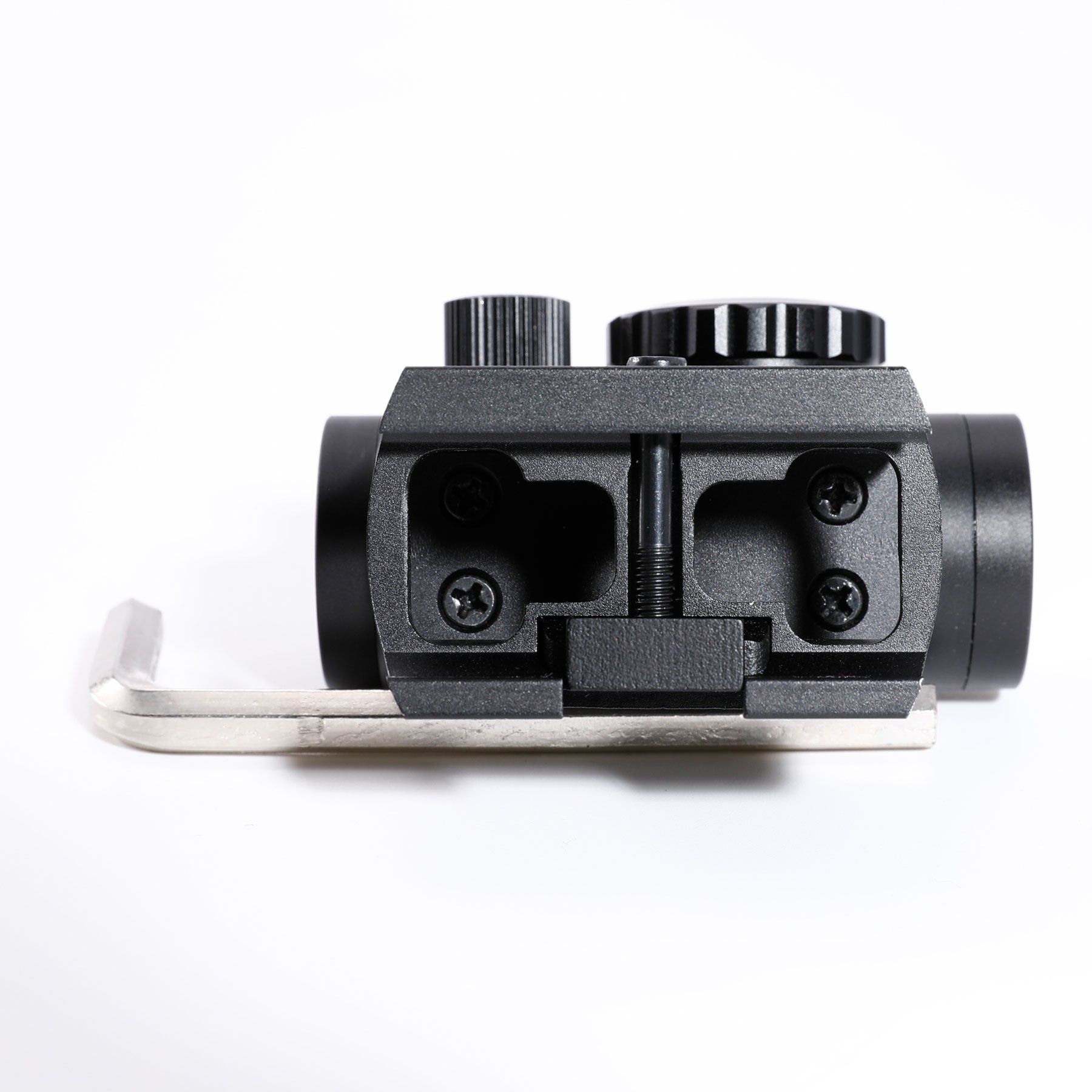

• Picatinny / Weaver Rails (20mm-22mm): This is the tactical industry standard. The vast majority of Pinty scopes and red dots come equipped with Picatinny-compatible mounts or bases included in the box, allowing you to clamp them onto your rail immediately.
• Dovetail Rails (11mm): Commonly found on traditional rimfire rifles and certain airgun platforms. Our Timber and Vanguard series use dovetail rails system.

Need an Adapter? We've Got You Covered: If your rifle features a narrow 11mm Dovetail rail, you don't need to worry. We offer budget-friendly, high-precision 11mm-to-20mm adapters in our store. This allows you to effortlessly bridge the gap and securely lock any standard Pinty Picatinny optic onto your setup.

If the glass is clean but the reticle looks distorted, it is usually due to one of two common optical or physiological factors:

• Diopter Adjustment (For Scopes): You need to adjust the ocular focus eyepiece (the ring closest to your eye) to match your specific vision. Look at a blank wall and turn the eyepiece until the reticle crosshairs appear perfectly crisp and sharp.

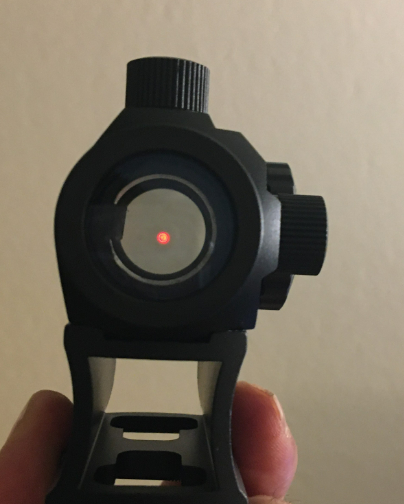

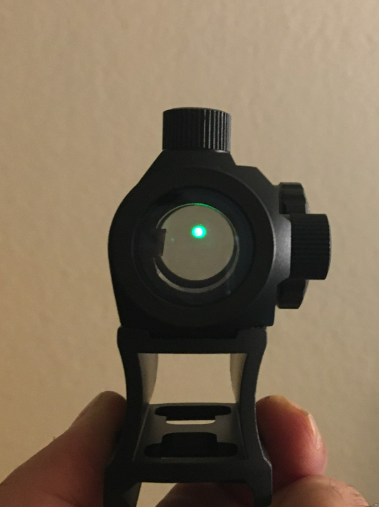

• Astigmatism (For Red Dots): If a red dot looks like an irregular blob, a starburst, or a comma instead of a perfect circle, you may have astigmatism (a common eye condition). To test this, take a photo of the red dot with your smartphone camera. If the dot looks perfectly round in the photo but blurry to your eye, it is an optical illusion caused by your vision. Lowering the brightness level can help significantly reduce this effect.
