Overview

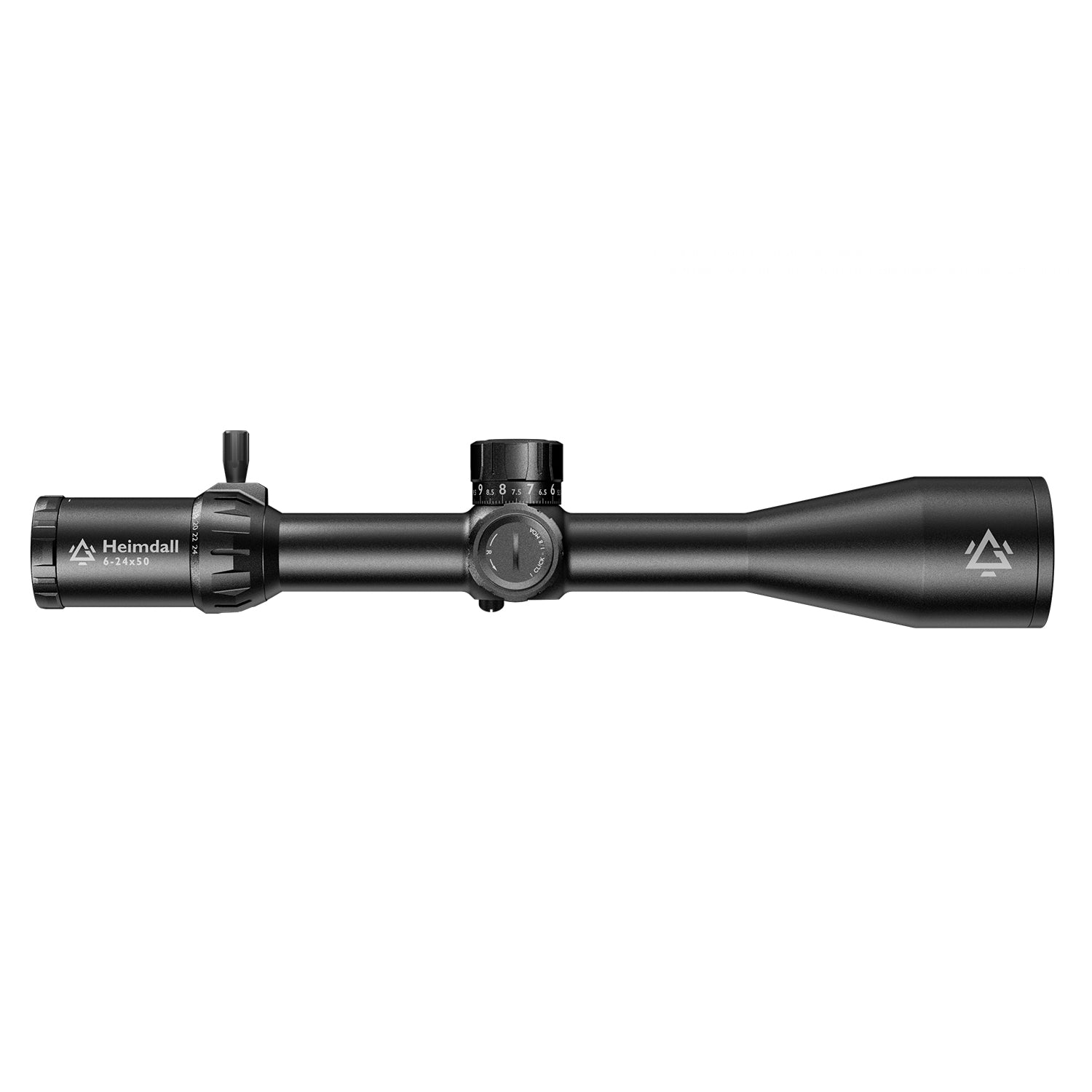

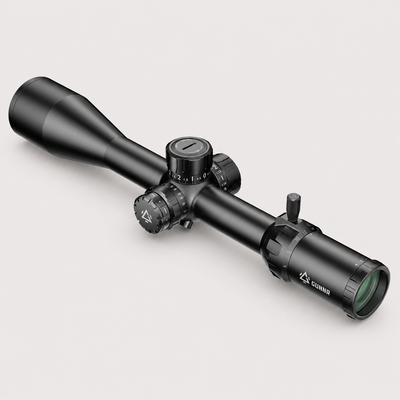

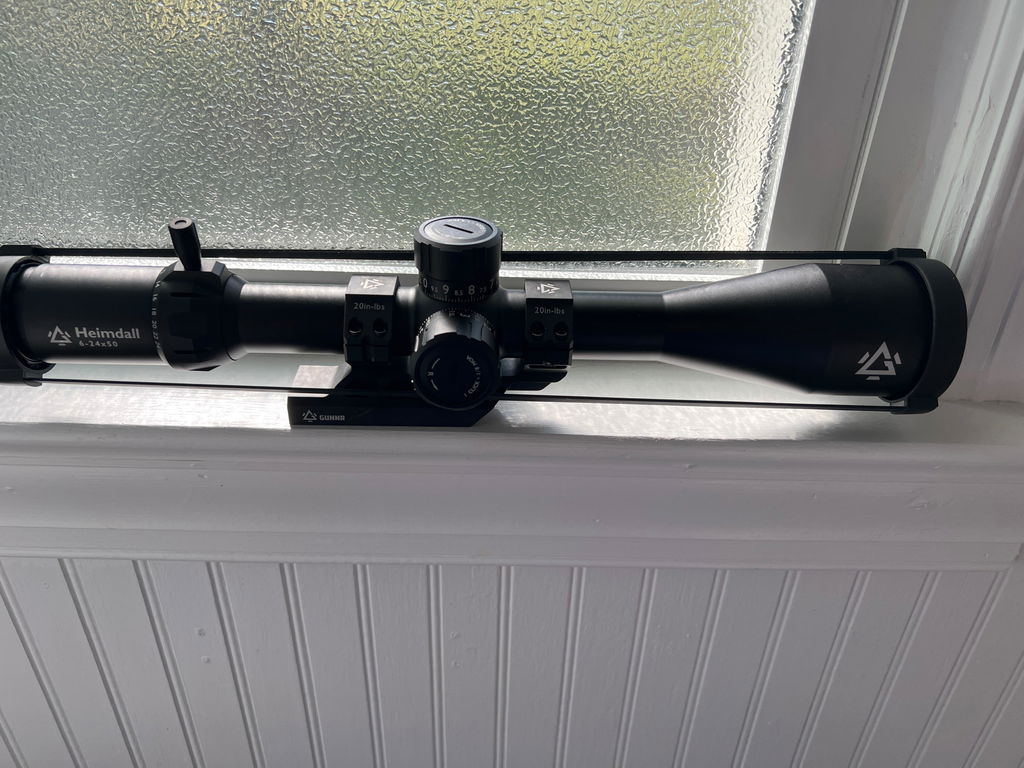

The Gunnr Heimdall 6-24x50 FFP is built for the marksman who demands absolute repeatability. Whether you're stretching the limits of a high-power PCP air rifle or competing in a PRS match, its elite HD optics and precision-etched FFP reticle ensure your holdovers are always dead-on, regardless of magnification.

Specification

Magnification
6-24x

Objective Diameter
1.97" (50 mm)

Tube Diameter
1.18" (30 mm)

Eye Relief
3.35″ (85 mm)

Field-of-View @ 100 Yards
6x: 21 ft (6.4 m)
24x: 5.3 ft (1.6 m)

Brightness Levels
6 daylight settings

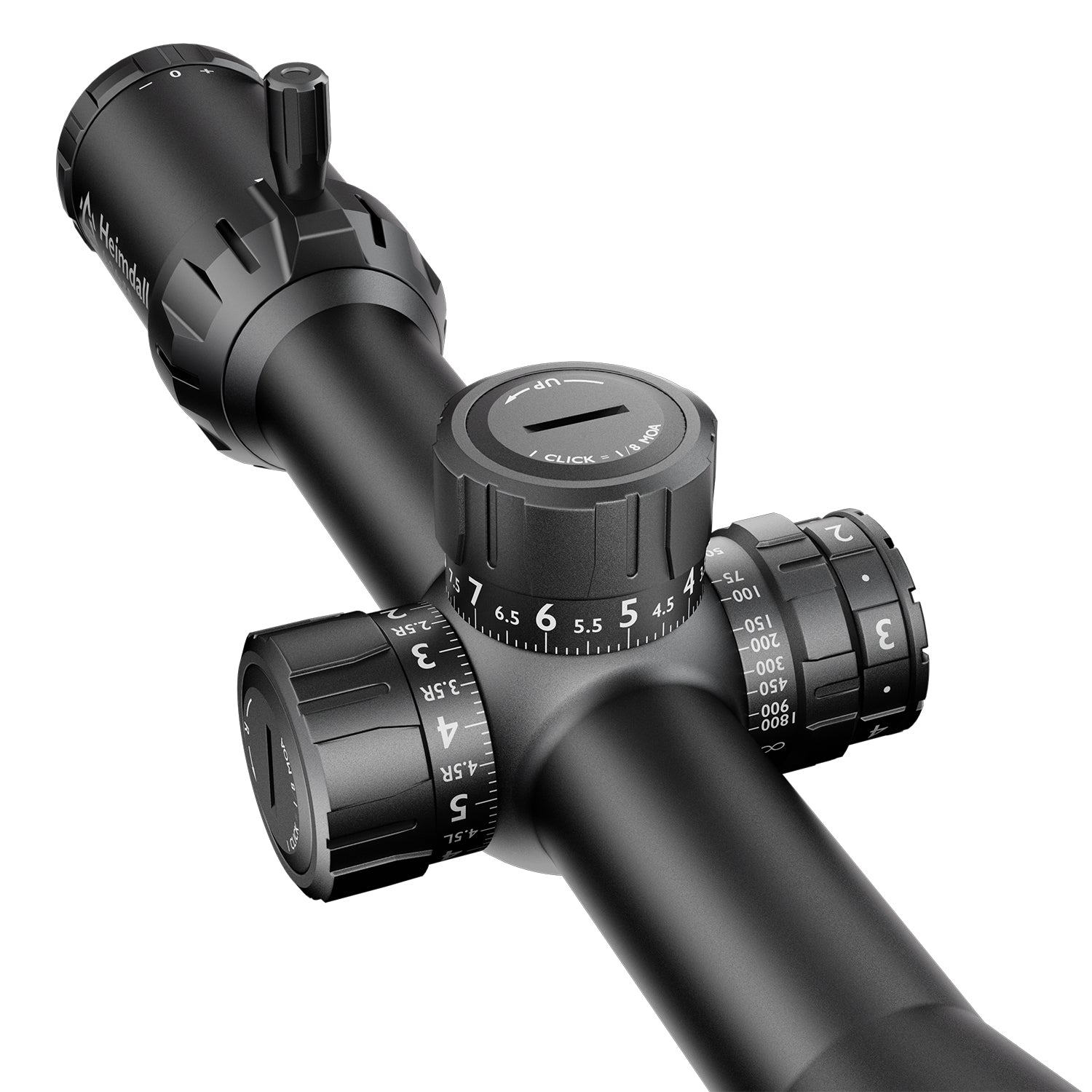

Max Windage & Elevation Adjustment
40 MOA

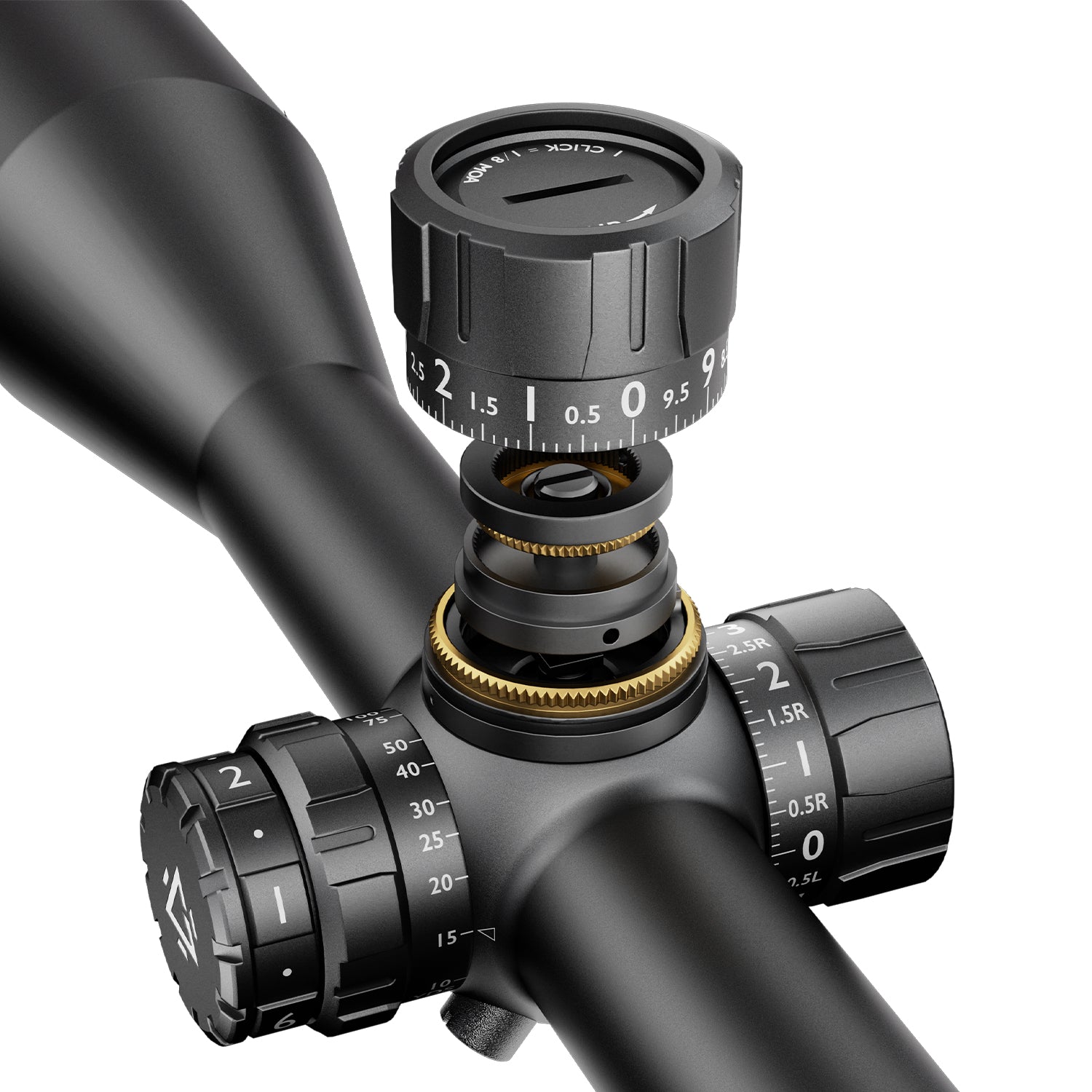

Click Value
1/8 MOA

Travel Per Rotation
20 MOA

Parallax Setting
10 yds. – ∞

Overall Length
15.5" (394 mm)

Weight
31.9 oz (904 g)

Power Source
1 x CR2032 battery

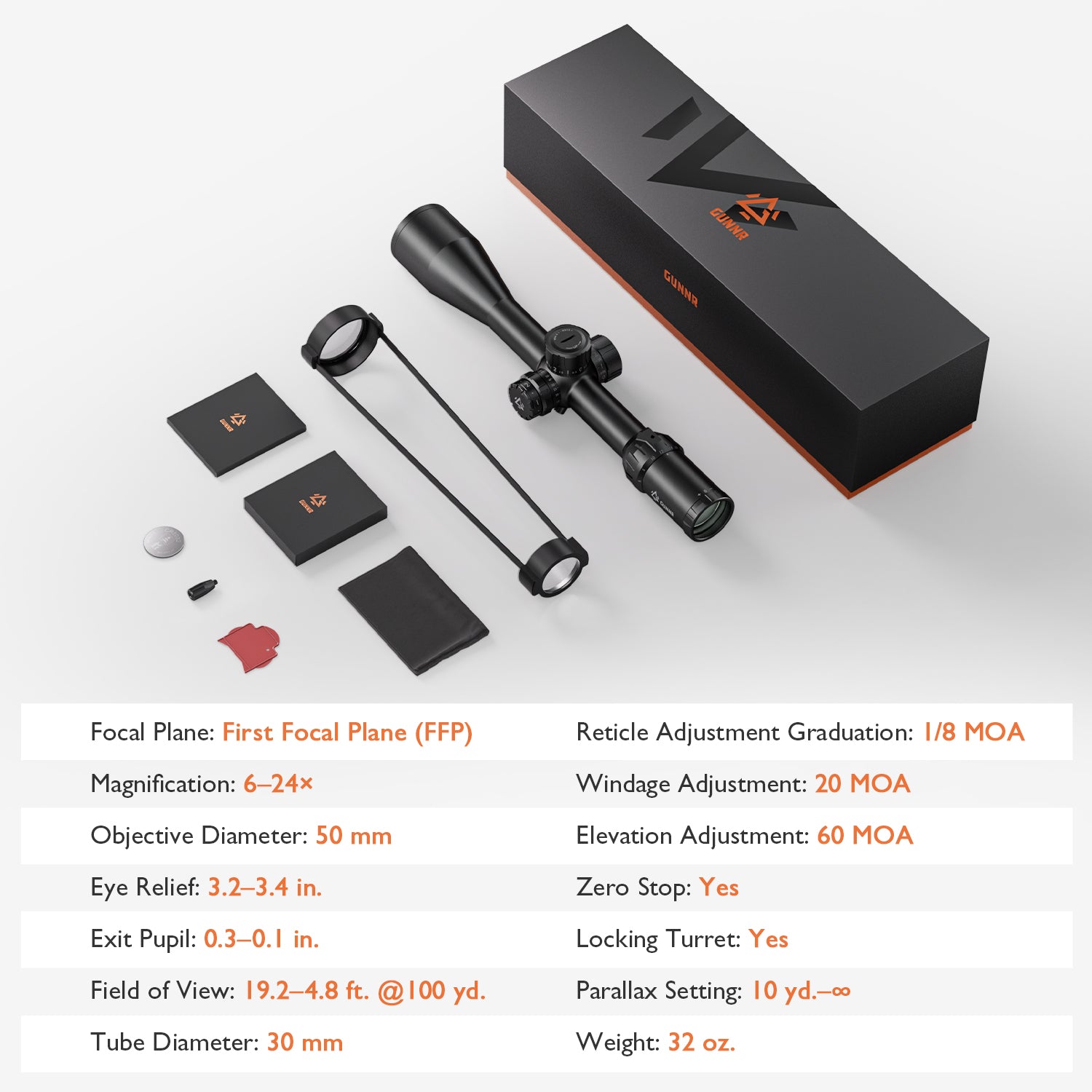

Included in the Box

  • Riflescope

  • Throw Lever

  • 2032 Battery

  • Lens Cloth

  • Torque Key

  • User Manual

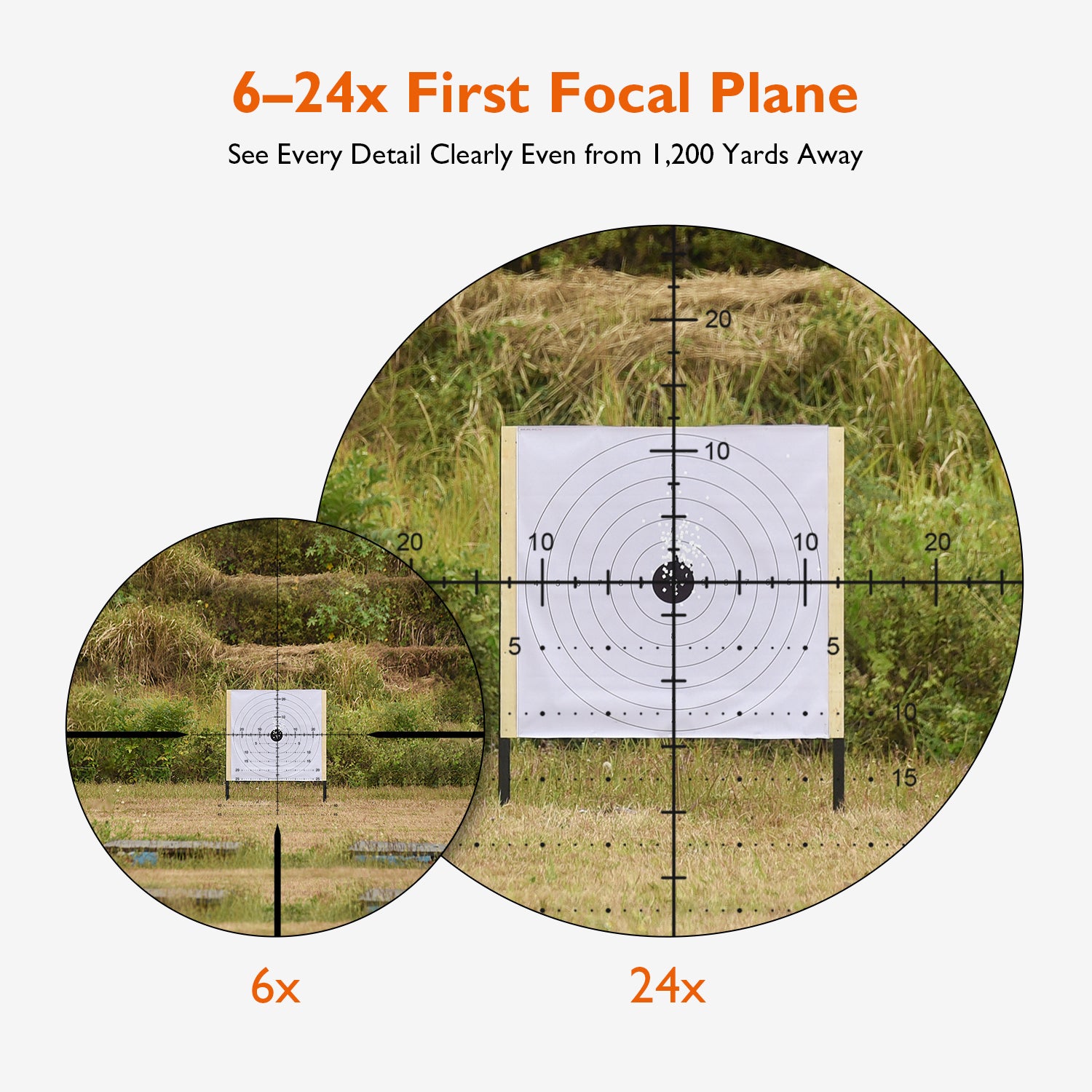

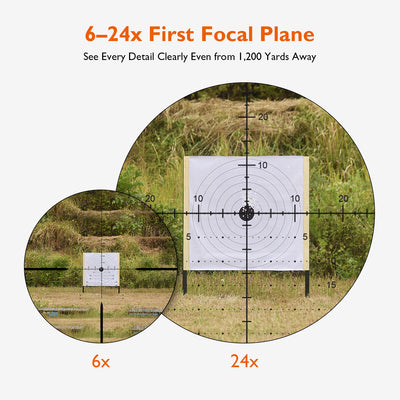

FFP-First Focal Plane

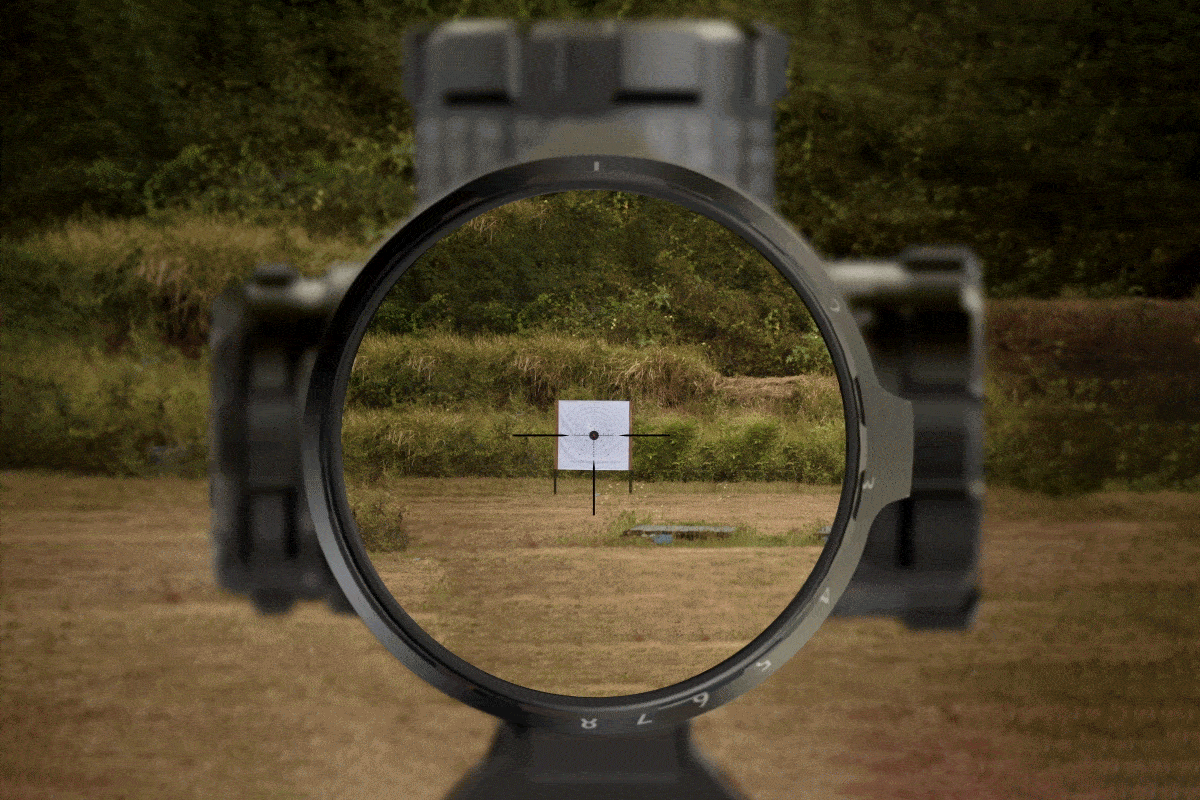

Gunnr scope's FFP (First Focal Plane) reticle grows and shrinks alongside the magnification, ensuring your holdovers and subtensions remain accurate at any zoom level. It's ideal for precise long-range shooting without the need of constant adjustments.

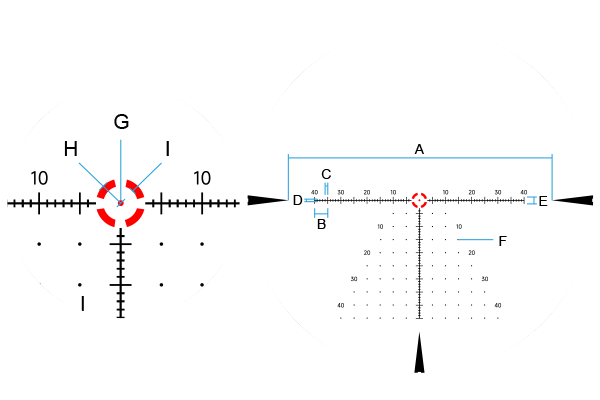

Tree Reticle

With its extended 1 MOA hash marks, this type of reticle facilitates accuracy for windage and elevation adjustments. It enables you to consistently hit your mark with precision at greater distances.

A: 100 MOA B: 5 MOA C: 1 MOA D: 1 MOA E: 2.7 MOA F: Ø 0.4 MOA

G: 0.85 MOA H: R3 MOA I: Ø 0.75 MOA
